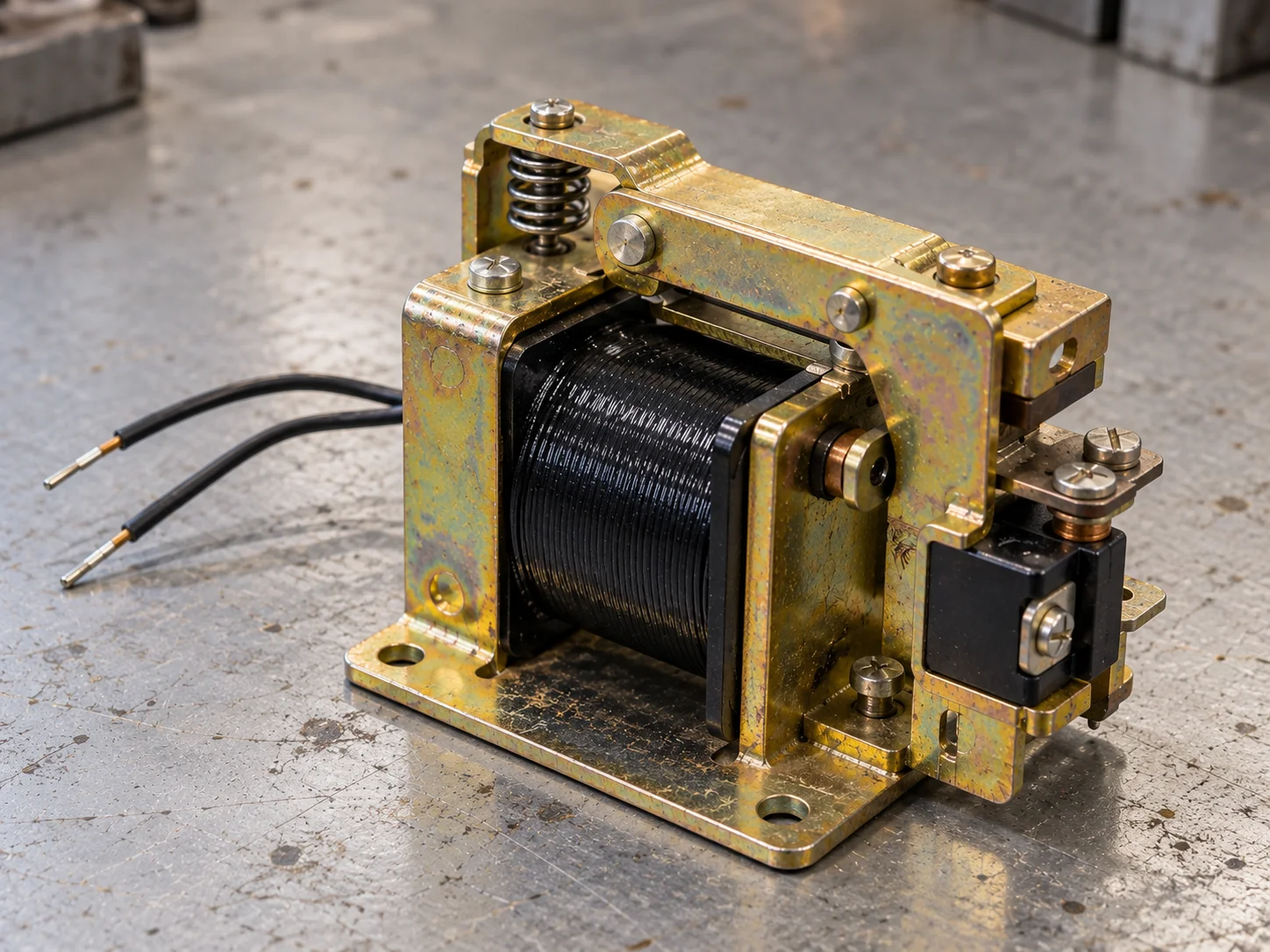

Railway Signal Relay Assembly
Precision electromagnetic relay assemblies for railway signalling circuits including points, track detection, and signals. Tested before dispatch and foam packed for safe transit.
View specifications
PITHAMPUR, MADHYA PRADESH : ESTABLISHED 2010
Signal relay assemblies and coach fan guards, manufactured in Pithampur since 2010
In-house precision turning, press work, electroplating, powder coating, vacuum annealing, and electrical testing for signalling and rolling stock equipment.
ESTABLISHED 2010
PRODUCT RANGE 4 Product Lines
Quality management system certified ISO 9001:2015
COMPLIANCE GST Registered
MANUFACTURED PRODUCTS
Precision railway signalling and coach equipment
Four specialized production lines manufactured in Pithampur to engineering drawings and purchase specifications.

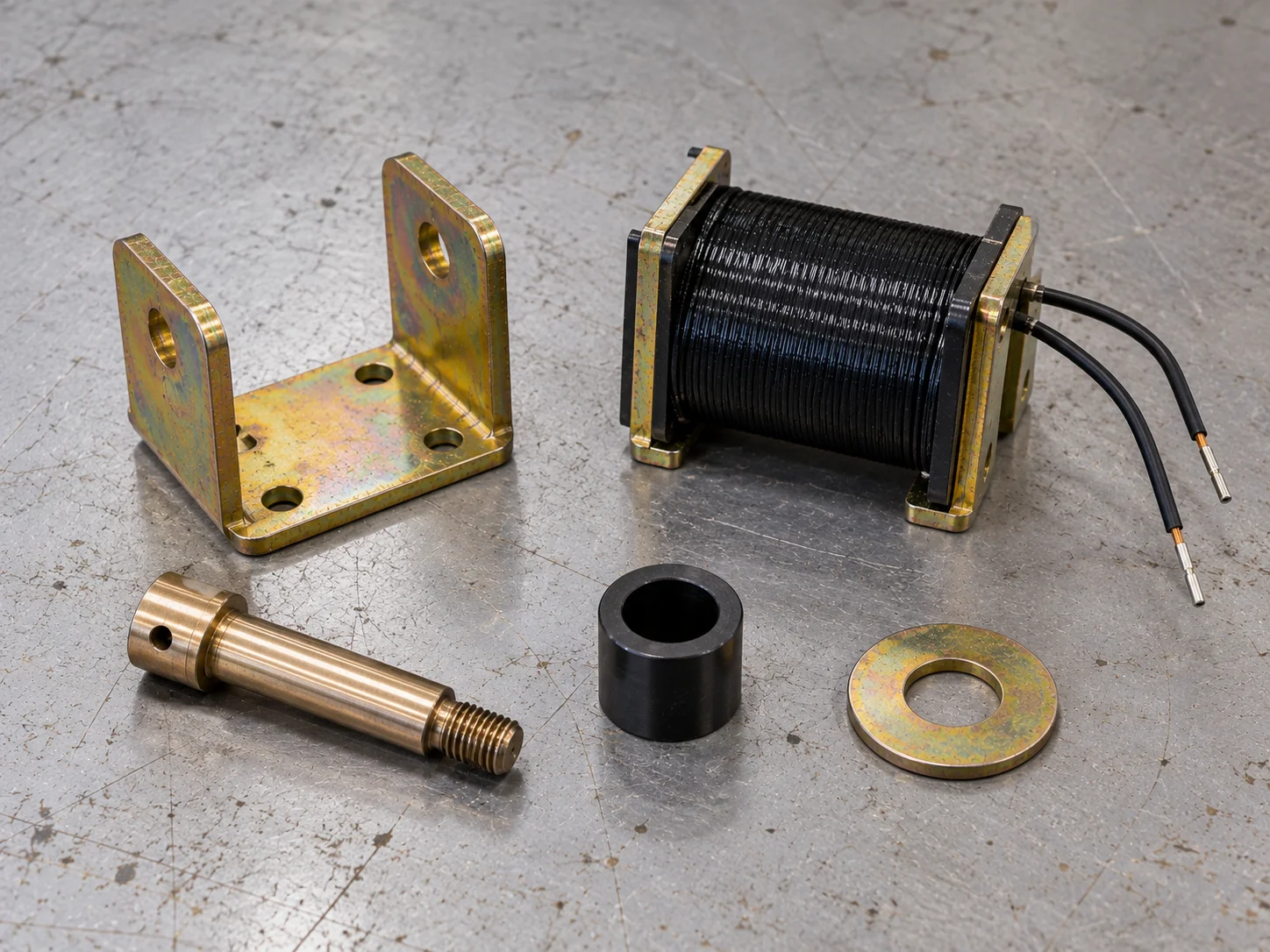

Railway Signal Relay Child Parts
Precision machined and pressed components including armature pins, spacer bushes, flat washers, mounting brackets, and electromagnetic coils.
View specifications

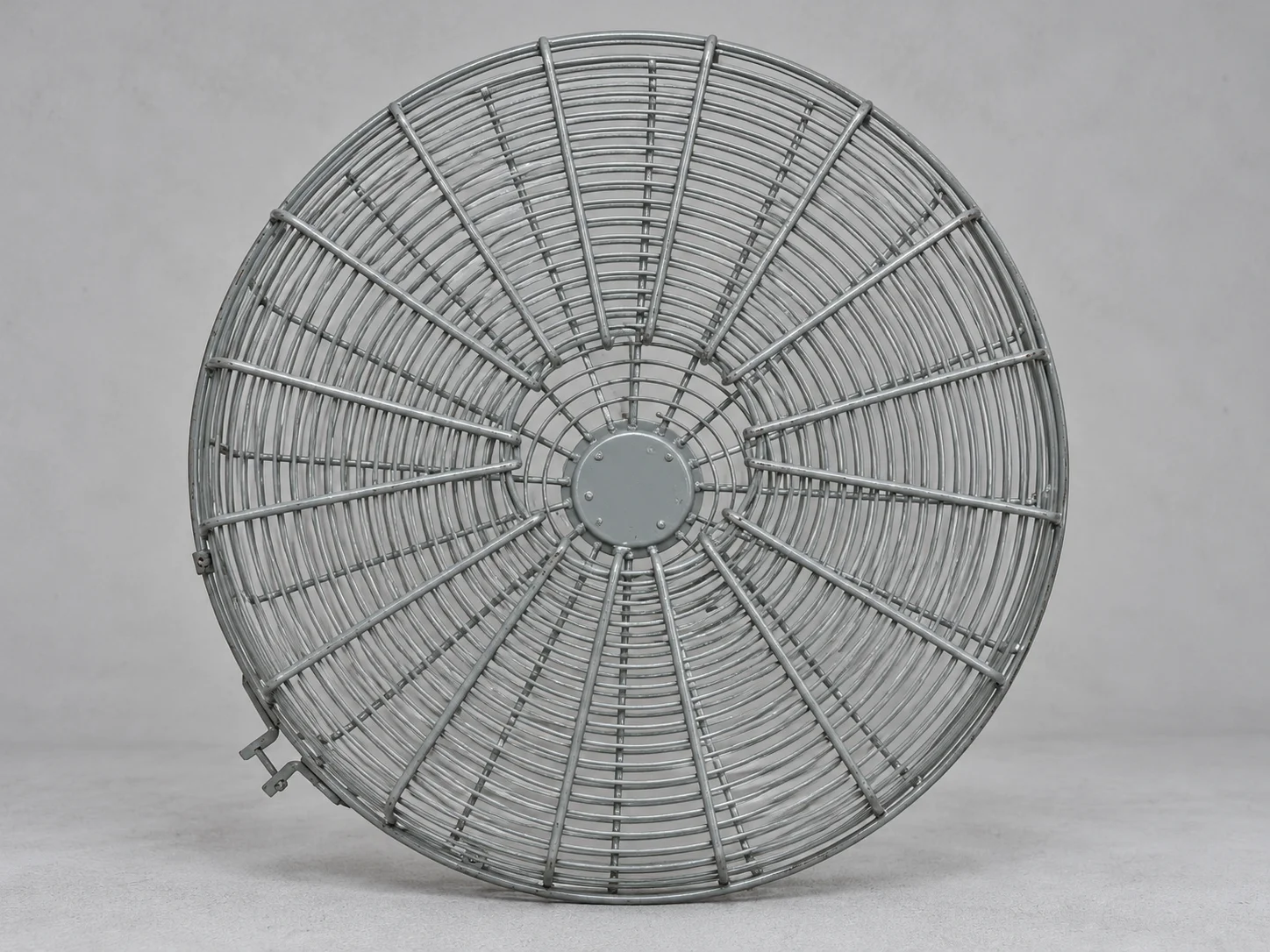

Coach Fan Guard in Mild Steel
Radial wire fan guards manufactured from mild steel with uniform powder-coated finish for railway coach passenger compartment fans.
View specifications

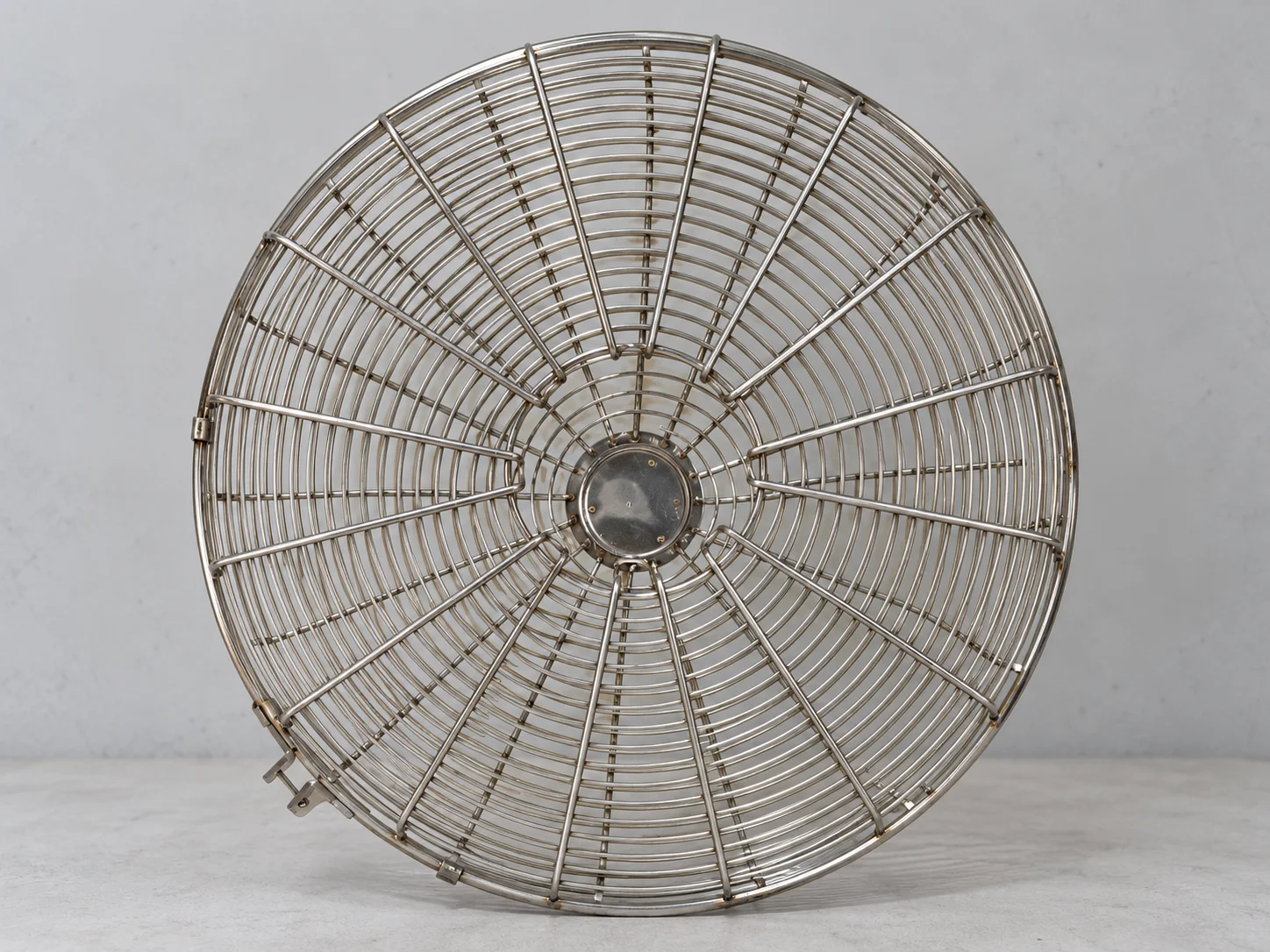

Coach Fan Guard in Stainless Steel
Corrosion-resistant radial wire fan guards manufactured from stainless steel with polished finish for railway coaches.
View specifications ABOUT THE MANUFACTURER
Industrial component manufacturing since 2010

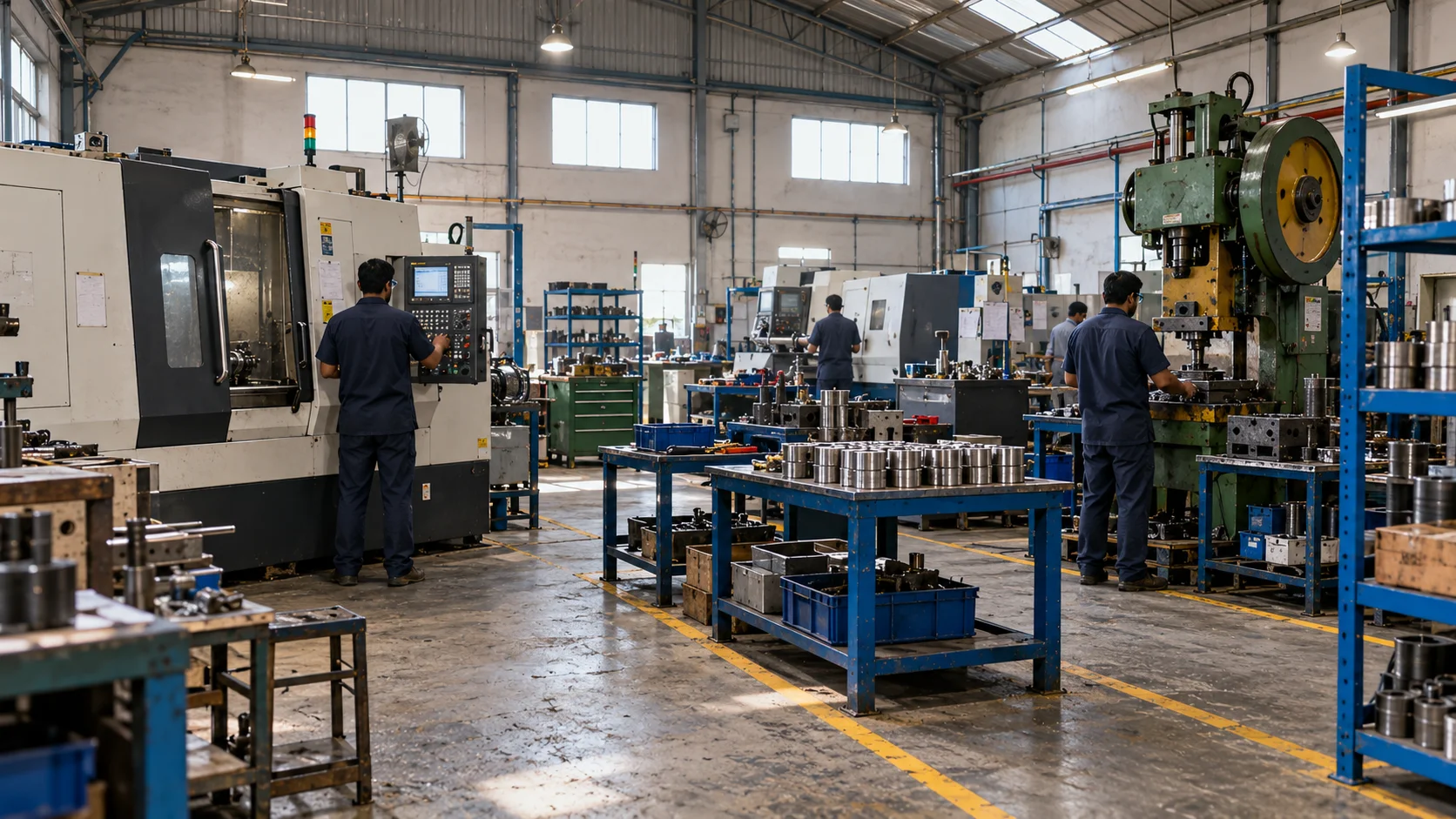

New Durga Wire Netting Work operates from Sector 59-A in the Pithampur Industrial Area, Dist. Dhar, Madhya Pradesh. Established in 2010, the company manufactures railway signal relay assemblies, relay child parts, and welded radial wire coach fan guards.
All production processes, including turning, press stamping, electroplating, powder coating, vacuum annealing, and functional electrical testing, are conducted entirely in-house.
PRODUCTION INFRASTRUCTURE
In-house machinery and tooling capabilities
Equipped for repeat production of turned child parts, pressed components, and milling.

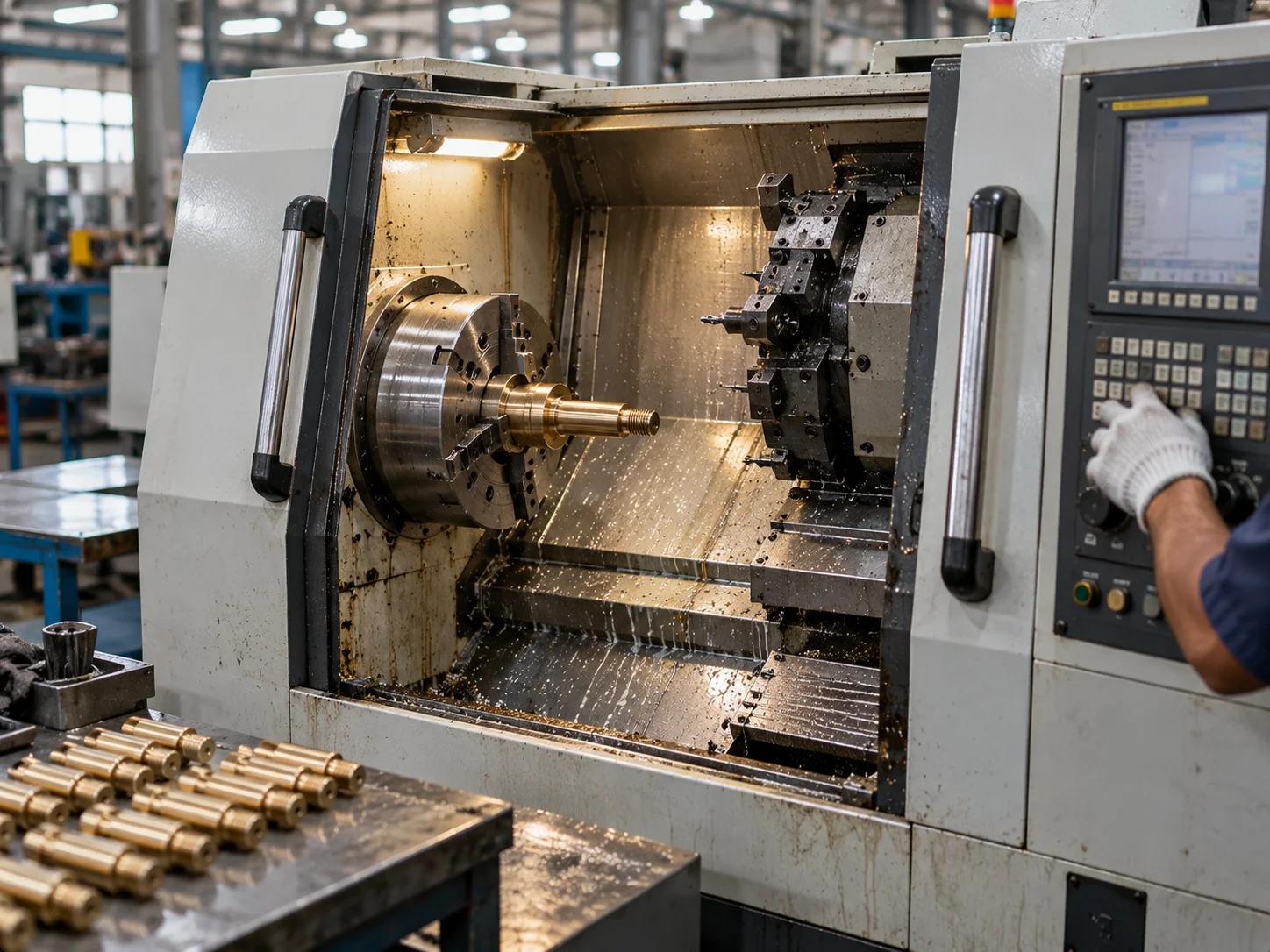

CNC Turning and Fabrication
Turning of pins, bushes and shafts, and fabrication to customer requirements.
Parts manufactured: Armature pin, spacer bush.
Press Machines, 10 to 75 ton
Blanking, punching and forming of pressed components.
Parts manufactured: Flat washer, mounting bracket.
Vertical Machining Centre (VMC)
Milling, drilling and slotting.

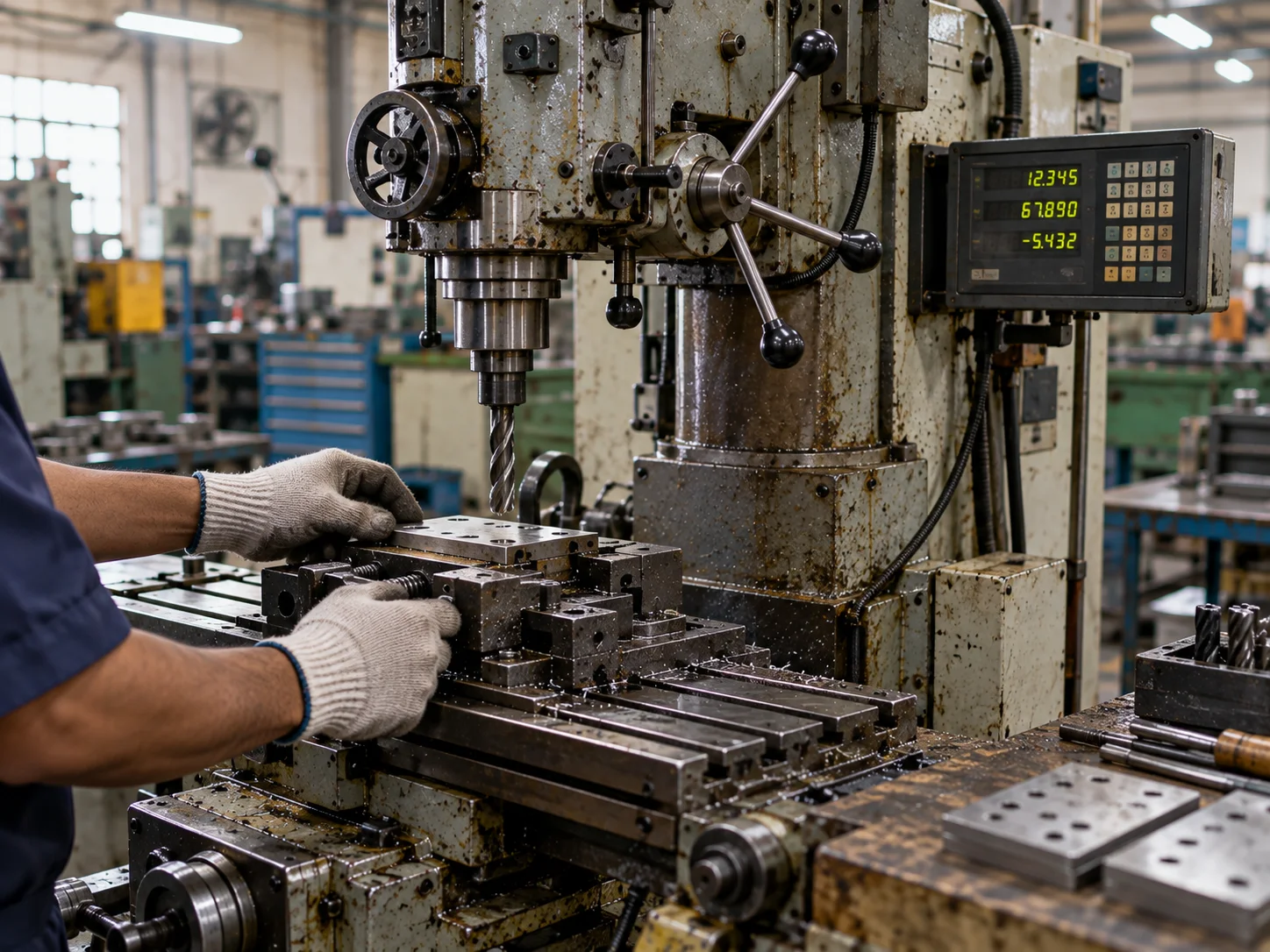

DRO Machine
Drilling with digital position readout.

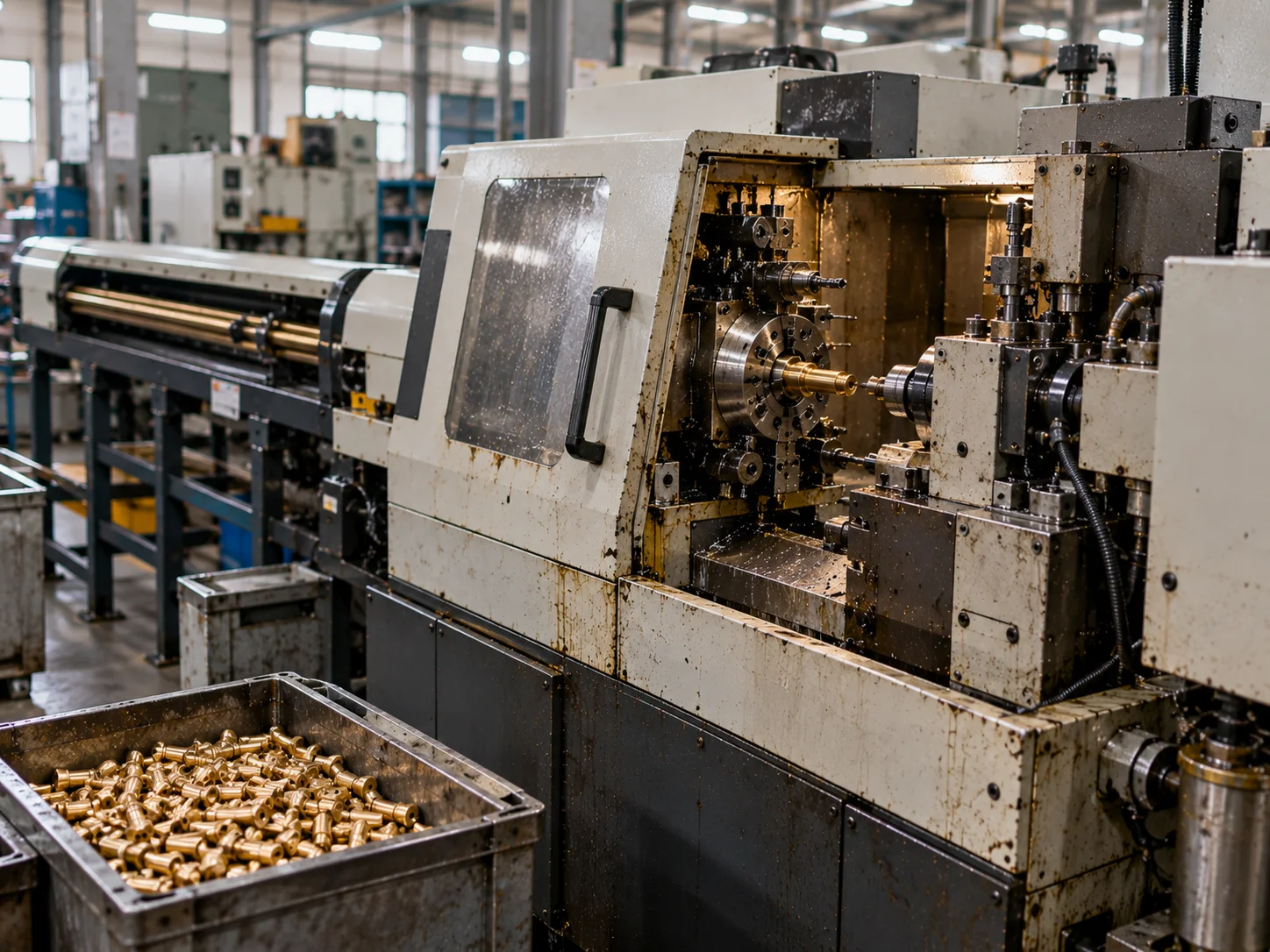

Traub Machine
Automatic turning for repeat production.
Machine details and capacity are shared on request with a drawing or sample.
MANUFACTURING WORKFLOW
How we make it in-house
Every stage is executed under defined inspection criteria from raw material inward to final dispatch.
01
Raw Material Inspection
Inward inspection of mild steel wire, sheets, stainless steel, and brass rounds against mill certificates and test standards.
Learn more about Raw Material Inspection02
Machining and Pressing
Turning of pins and bushes, stamping of brackets and washers, and milling.
Learn more about Machining and Pressing03
In-House Finishing
In-house electroplating provides corrosion protection and gold-yellow finish on relay parts. Electrostatic powder coating produces durable painted finish on mild steel fan guards. Vacuum annealing furnace provides stress relief in controlled vacuum atmosphere.
Learn more about In-House Finishing04
Assembly and Electrical Testing
Mechanical assembly of coils, armatures, contacts, and brackets. Resistance testing, operate and release action verification, and contact continuity checks.
Learn more about Assembly and Electrical Testing05
Protective Packing and Dispatch
Foam packing of delicate relay assemblies for transit protection, batch boxing of child parts, and corrugated packing of coach fan guards.
Learn more about Protective Packing and Dispatch QUALITY ASSURANCE
Inspection checkpoints and compliance verification
Every component batch is verified against engineering drawings and functional requirements before dispatch.
| Inspection Stage | Checks Performed Against Drawing and Specification |
|---|---|

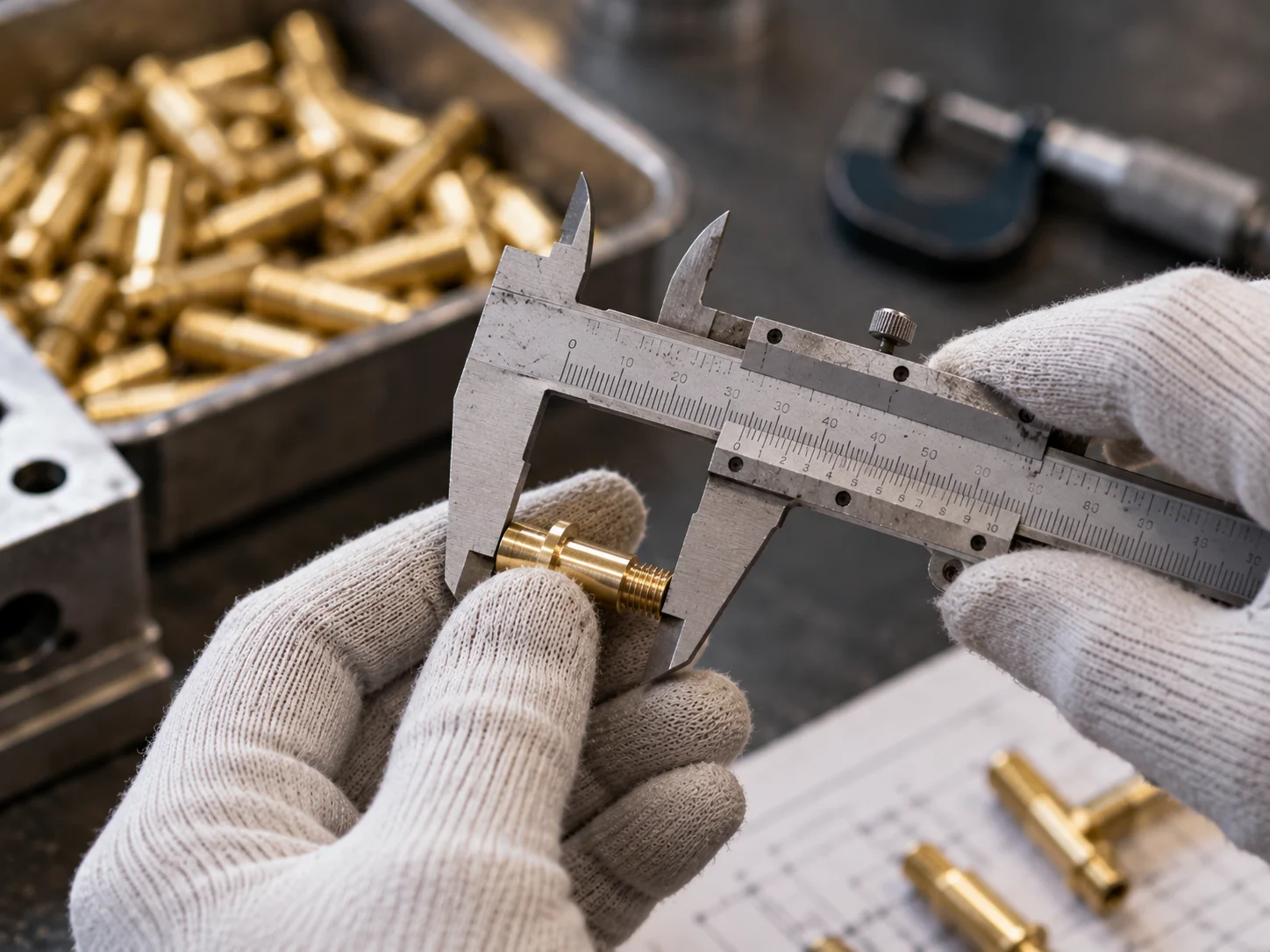

| Machined and Pressed Parts | Dimensions, threads, concentricity, and burrs verified against engineering drawings using calibrated vernier calipers, micrometers, and plug gauges. |

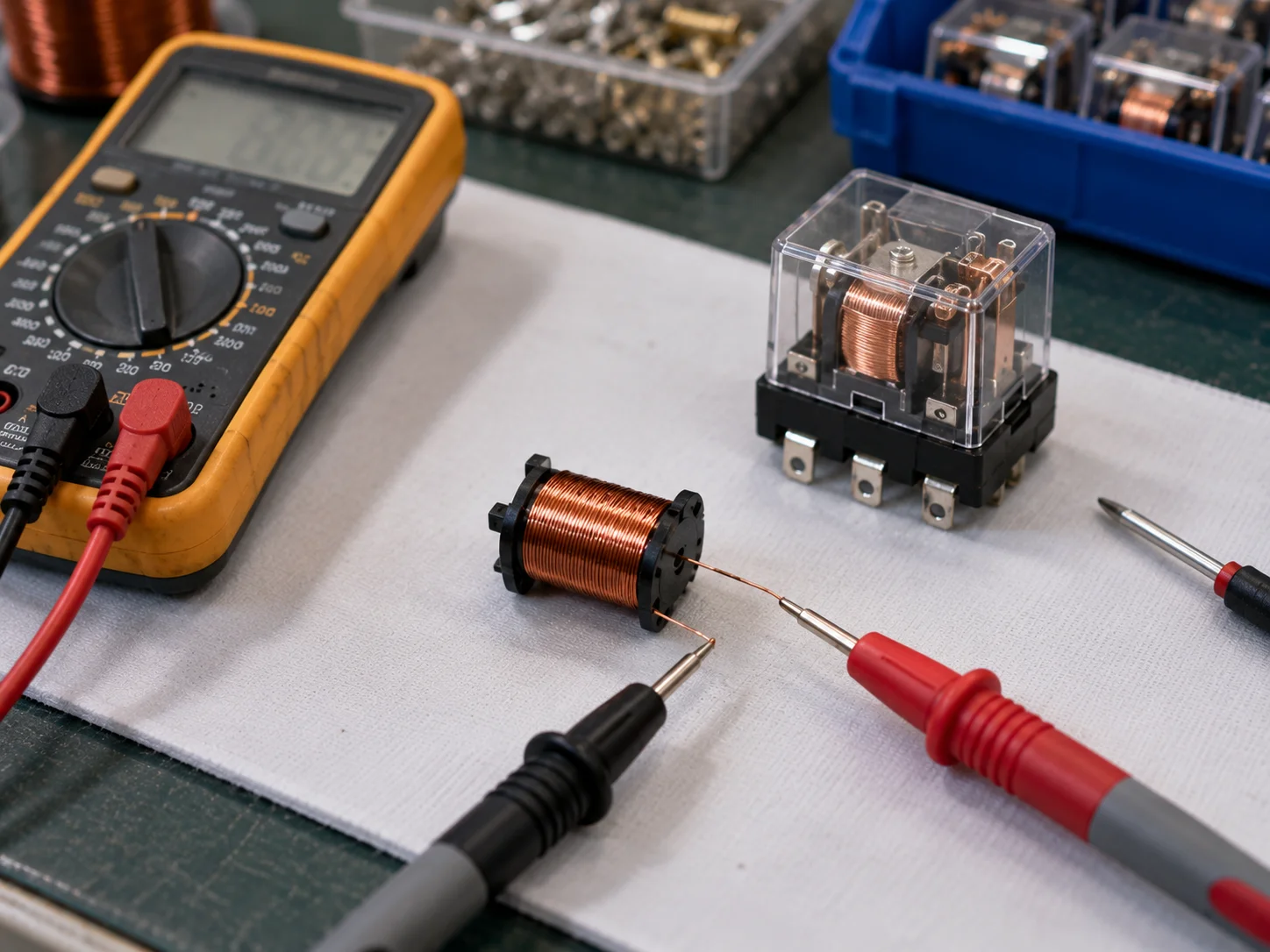

| Relay Assemblies | Coil resistance measurement, contact continuity under closed conditions, operate and release mechanical action verification. |
| Coach Fan Guards | Radial wire spacing verification, welded joint pull strength, powder coating adhesion, and stainless steel surface polish inspection. |
| Pre-Dispatch Inspection | Consignment quantity count, visual condition check, foam packing security, and protective packaging against transit damage. |

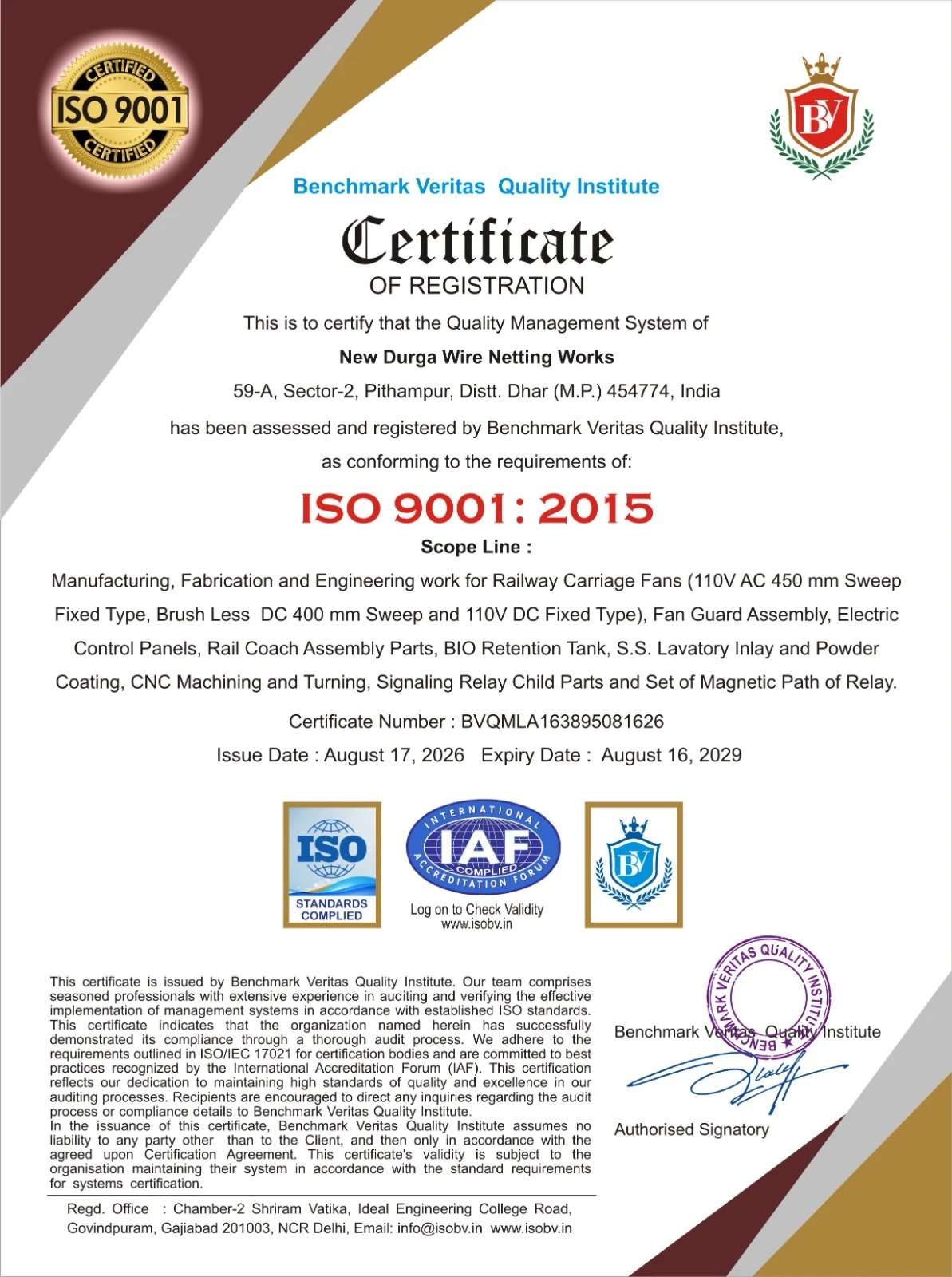

ISO 9001:2015
Quality management system certified to ISO 9001:2015 by Benchmark Veritas Quality Institute.
Valid until 16 August 2029
CUSTOM FABRICATION AND MACHINING

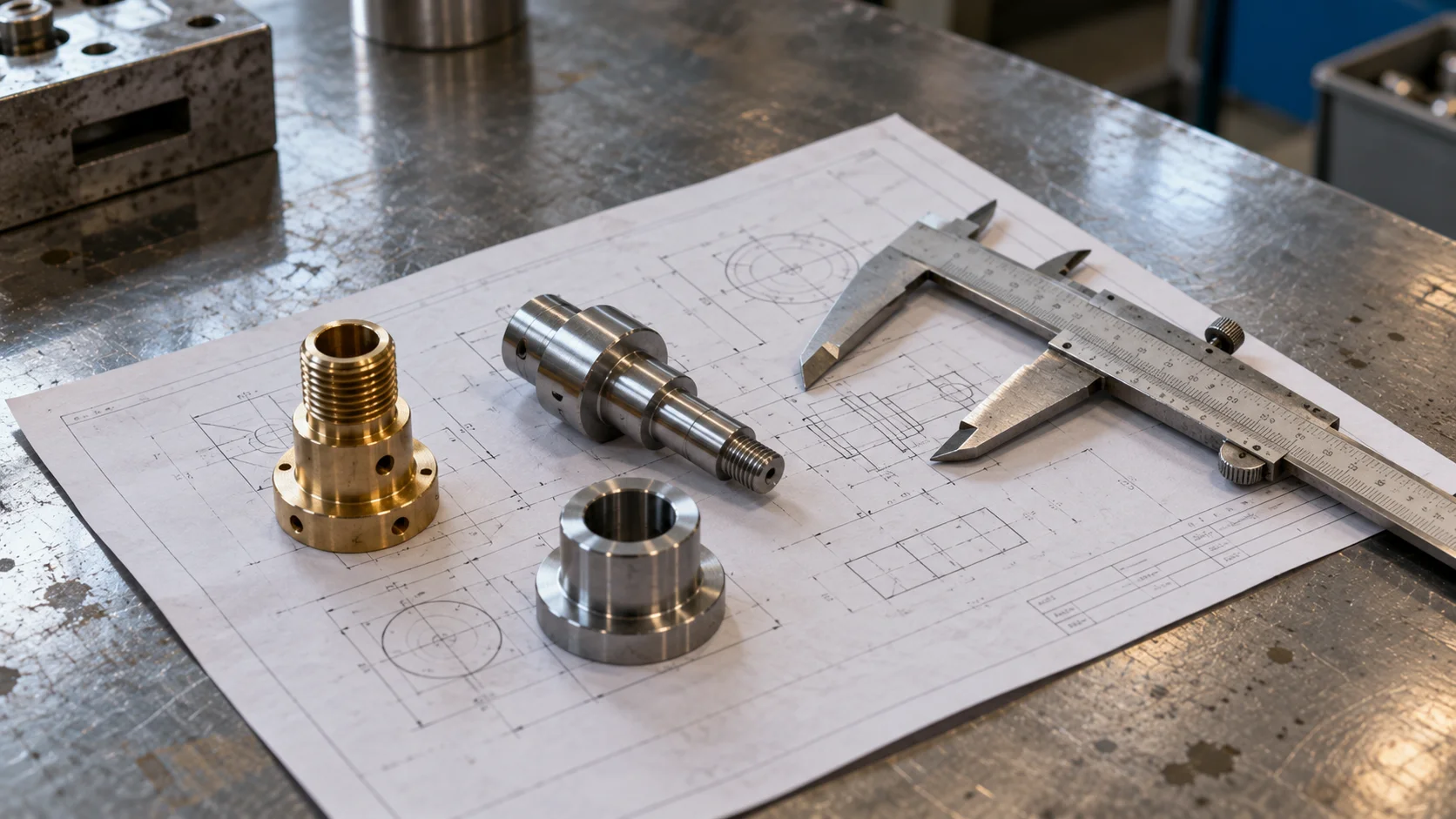

Send us your drawing or sample
We undertake customer-specific job work for railway and electrical equipment manufacturers. To quote your requirements accurately, please provide:
- Engineering drawing (PDF or CAD) or physical component sample
- Specified material grade and required batch quantity
- Dimensional tolerances and surface finish requirement
- Delivery schedule requirement and destination
VERIFIED CLIENT RELATIONSHIPS
Companies we supply
Supplying precision components, relay parts, and coach equipment to established electrical and railway OEMs.
REGIONAL SUPPLY REACH
Supplying components for railway signalling and coach equipment
Regions we supply to:
Gorakhpur North Eastern Railway
Signalling relay assemblies and child parts supplied for North Eastern Railway jurisdiction.
Udhna, Surat Western Railway
Coach equipment components and relay child parts supplied for Western Railway division.
Mumbai Western and Central Railway
Signalling components and coach fan guards supplied across Mumbai rail divisions.
COMMERCIAL AND TECHNICAL ENQUIRIES
Connect with our Pithampur facility
Contact our engineering and sales desk directly for component inquiries, batch pricing, and technical discussions.
FACILITY LOCATION
Sector 59-A, Industrial Area, Pithampur, Dist. Dhar, Madhya Pradesh 454775
Request a Component Quotation
Submit your component requirements. For technical drawings, please email or WhatsApp files directly.
